DaTran Corporation designs custom electronic circuits to bring your idea to life. We’ve helped customers design everything from a fishing pole sensor (a high-tech bobbin!), to down-hole oilfield electronics, to tanker truck tracking devices, to electronic controls for large-scale agricultural sprayers.

Our own line of products perform data acquisition and processing. We make controllers of all sorts to run displays, drive motors, run pumps or perform any other type of output. We know the in’s and out’s of IO!

Incorporated in 1990, DaTran Corporation provides contract electronic engineering (and manufacturing) services to industrial, commercial, and governmental customers and also to inventors and entrepreneurs. Our small size allows us to move quickly and give our customers close personal attention to engineering and manufacturing projects.

The Manufacturing process

Once you have board layout files and a parts list we can start manufacturing prototypes or production boards. Let’s make sure we have everything in order first, though:

  1. Board Layout (Gerber) files - made from the schematic. If you don’t have these or a schematic yet, check out our design services page. DaTran can create these for you.

  2. Parts list (bill of materials, or BOM) with manufacturer part numbers, quantities of each part and reference designators. DaTran can create your BOM if you don’t have one - click on the electronic design services link if you us to create that for you.



DaTran can create board files and parts lists from your schematic. Don’t have a schematic yet? Our engineers can help you develop it. Bring us your idea - we are here to help make it your reality!



From your board layout files we will create and manufacture the “bare” circuit boards. We will also use these files to make a paste stencil for our SMT line. Your board layout files include pick & place data for the SMT line. From your parts list we create a “DaTran BOM” that we use along with the pick & place data to program the SMT machines. The DaTran BOM is entered into our MRP system for parts ordering and tracking, also.

Printed circuit boards of various sizes, shapes and complexity are no problem!

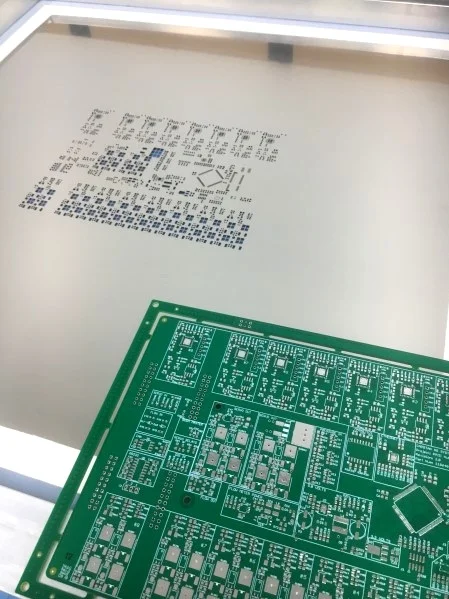

Simple but important - a high quality stencil ensures solder paste is applied properly to SMT pads on the bare boards.

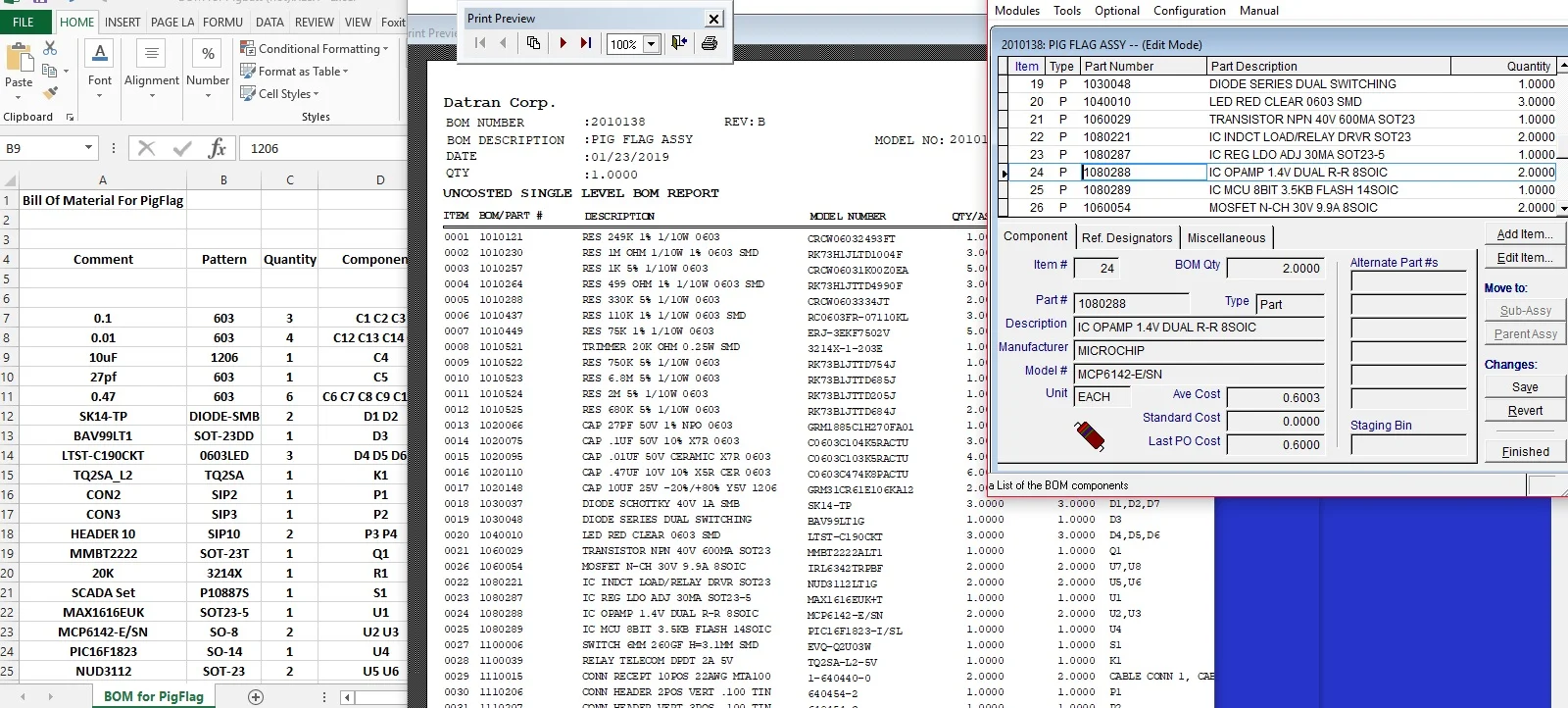

We’ll import your BOM into our MRP for efficient parts control and order tracking.

After programming, the machines quickly and accurately assemble the surface mount components. SMT programs are kept on file for future manufacturing runs and can be easily modified as your product matures. Upon completion of SMT assembly the boards are inspected and any needed through-hole components are added by hand (or by wave soldering machines, depending on board quantity and through-hole parts count).

SMT program file

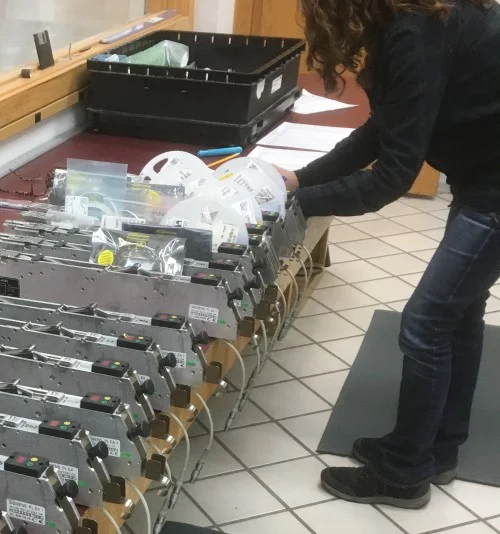

Loading feeders for SMT machine

Getting ready to run…

Just about ready…

Let’s build some boards!

Selective wave solder machine for through-hole components.

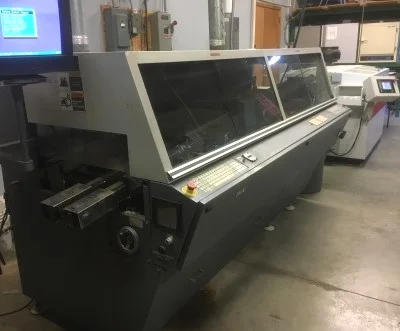

Tried and true… our old Electorvert is still alive and kicking in case we need to wave some extra-large boards.

Let’s take a look at some boards after SMT and through-hole work is done:
